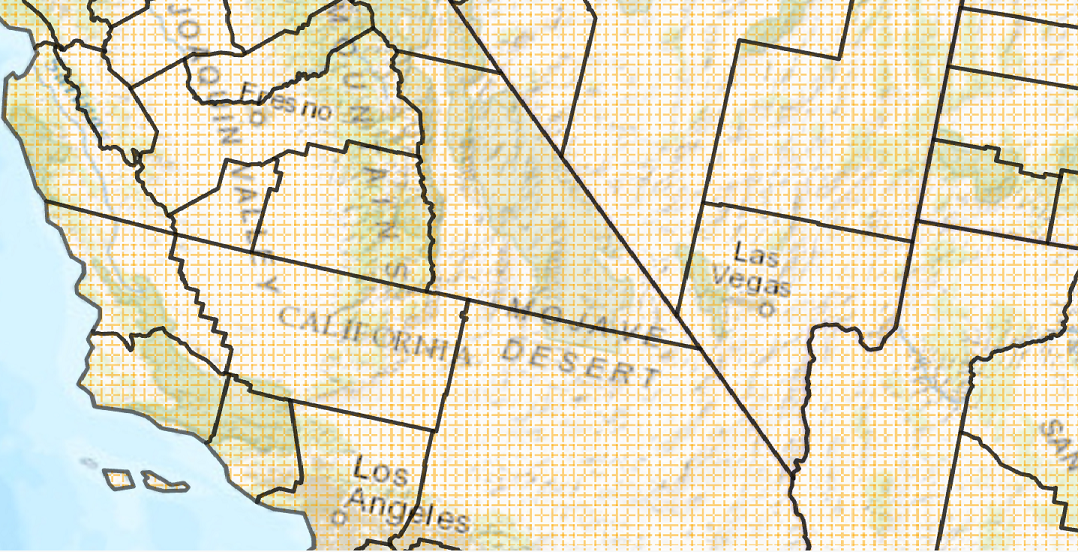

/// <summary> /// Create a polygon symbol with a cross hatch fill. <br/> /// ![PolygonSymbolCrossHatch](http://Esri.github.io/arcgis-pro-sdk/images/Symbology/polygon-crosshatch.png) /// </summary> /// <returns></returns> public static Task <CIMPolygonSymbol> CreateCrossHatchPolygonAsync() { return(QueuedTask.Run <CIMPolygonSymbol>(() => { var trans = 50.0;//semi transparent CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, trans), 2.0, SimpleLineStyle.Solid); //Stroke for the hatch fill var dash = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(255, 170, 0, trans), 1.0, SimpleLineStyle.Dash); //Mimic cross hatch CIMFill[] crossHatch = { new CIMHatchFill() { Enable = true, Rotation = 0.0, Separation = 5.0, LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1]{ dash } } }, new CIMHatchFill() { Enable = true, Rotation = 90.0, Separation = 5.0, LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1]{ dash } } } }; List <CIMSymbolLayer> symbolLayers = new List <CIMSymbolLayer>(); symbolLayers.Add(outline); foreach (var fill in crossHatch) { symbolLayers.Add(fill); } return new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }; })); }
private CIMRenderer CreateniqueValueRendererForUSStatesUsingDefinition(FeatureLayer featureLayer) { //All of these methods have to be called on the MCT if (Module1.OnUIThread) { throw new CalledOnWrongThreadException(); } // color ramp CIMICCColorSpace colorSpace = new CIMICCColorSpace() { URL = "Default RGB" }; CIMContinuousColorRamp continuousColorRamp = new CIMLinearContinuousColorRamp(); continuousColorRamp.FromColor = CIMColor.CreateRGBColor(255, 255, 100); // yellow continuousColorRamp.ToColor = CIMColor.CreateRGBColor(255, 0, 0); // red continuousColorRamp.ColorSpace = colorSpace; CIMRandomHSVColorRamp randomHSVColorRamp = new CIMRandomHSVColorRamp() { ColorSpace = colorSpace, MinAlpha = 100, MaxAlpha = 100, MinH = 0, MaxH = 360, MinS = 15, MaxS = 30, MinV = 99, MaxV = 100, Seed = 0 }; UniqueValueRendererDefinition uvRendererDef = new UniqueValueRendererDefinition() { ColorRamp = continuousColorRamp, // randomHSVColorRamp, UseDefaultSymbol = true, ValueFields = new List <string> { "TOTPOP2010" } }; //Configure the Renderer using the layer and the contents of the STATENAM //field return(featureLayer.CreateRenderer(uvRendererDef)); }
private void BulkGraphicsCreation() { #region Bulk Graphics creation //Point Feature layer to convert into graphics var lyr = MapView.Active?.Map?.GetLayersAsFlattenedList().OfType <FeatureLayer>().FirstOrDefault(); //Graphics layer to store the graphics to var gl = MapView.Active.Map.GetLayersAsFlattenedList().OfType <ArcGIS.Desktop.Mapping.GraphicsLayer>().FirstOrDefault(); if (lyr == null) { return; } QueuedTask.Run(() => { //Point symbol for graphics var pointSymbol = SymbolFactory.Instance.ConstructPointSymbol(CIMColor.CreateRGBColor(100, 255, 40), 10, SimpleMarkerStyle.Circle); //Collection to hold the point graphics var listGraphicElements = new List <CIMGraphic>(); //Iterate through each point feature in the feature layer using (RowCursor rows = lyr.Search()) //execute { int i = 0; while (rows.MoveNext()) { using (var feature = rows.Current as Feature) { //Create a point graphic for the feature var crimePt = feature.GetShape() as MapPoint; if (crimePt != null) { var cimGraphicElement = new CIMPointGraphic { Location = crimePt, //MapPoint Symbol = pointSymbol.MakeSymbolReference() }; //Add the point feature to the collection listGraphicElements.Add(cimGraphicElement); i++; } } } } //Magic happens...Add all the features to the Graphics layer gl.AddElements(listGraphicElements); }); #endregion }

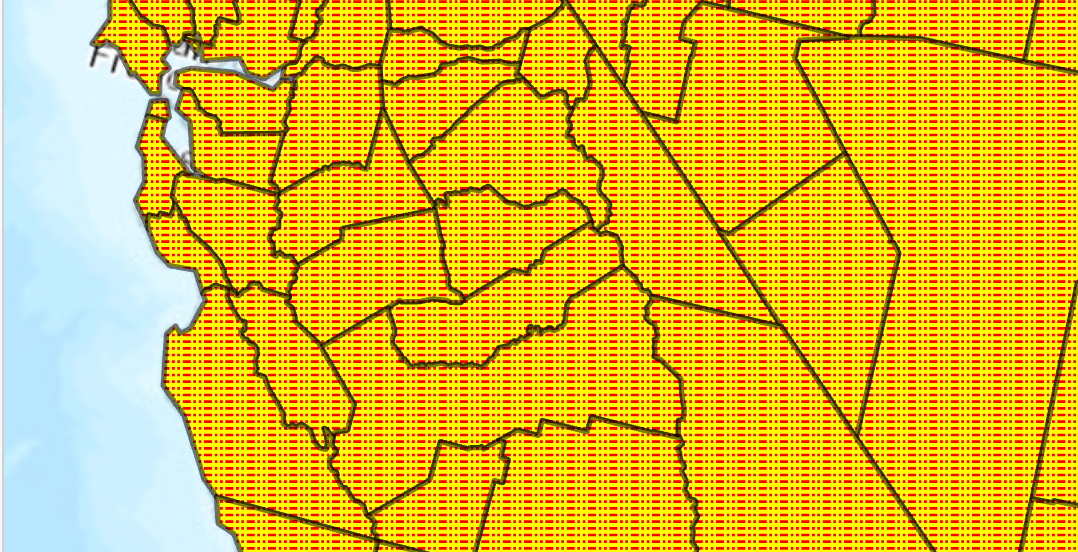

/// <summary> /// Create a polygon symbol with a dash dot fill. <br/> /// ![PolygonSymbolDashDot](http://Esri.github.io/arcgis-pro-sdk/images/Symbology/polygon-dash-dot.png) /// </summary> /// <returns></returns> public static async Task <CIMPolygonSymbol> CreateDashDotFill() { var polyDashDotFill = await QueuedTask.Run(() => { var trans = 50.0;//semi transparent CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, trans), 2.0, SimpleLineStyle.Solid); //Stroke for the fill var dashDot = SymbolFactory.Instance.ConstructStroke(ColorFactory.Instance.RedRGB, 1.0, SimpleLineStyle.DashDotDot); //Mimic cross hatch CIMFill[] solidColorHatch = { new CIMHatchFill() { Enable = true, Rotation = 0.0, Separation = 2.5, LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1]{ dashDot } } }, new CIMSolidFill() { Enable = true, Color = ColorFactory.Instance.CreateRGBColor(255, 255, 0) }, }; List <CIMSymbolLayer> symbolLayers = new List <CIMSymbolLayer>(); symbolLayers.Add(outline); foreach (var fill in solidColorHatch) { symbolLayers.Add(fill); } return(new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }); }); return(polyDashDotFill); }
/// <summary> /// Create a polygon symbol with a gradient color fill. <br/> /// ![PolygonSymbolGradientColor](http://Esri.github.io/arcgis-pro-sdk/images/Symbology/polygon-gradient-color.png) /// </summary> /// <remarks> /// 1. Create a solid colored stroke with 50% transparency /// 1. Create a fill using gradient colors red through green /// 1. Apply both the stroke and fill as a symbol layer array to the new PolygonSymbol /// </remarks> /// <returns></returns> public static Task <CIMPolygonSymbol> CreateGradientFillAsync() { return(QueuedTask.Run <CIMPolygonSymbol>(() => { var trans = 50.0;//semi transparent CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, trans), 2.0, SimpleLineStyle.Solid); //Mimic cross hatch CIMFill solidColorHatch = new CIMGradientFill() { ColorRamp = ColorFactory.Instance.ConstructColorRamp(ColorRampAlgorithm.LinearContinuous, ColorFactory.Instance.RedRGB, ColorFactory.Instance.GreenRGB) }; List <CIMSymbolLayer> symbolLayers = new List <CIMSymbolLayer>(); symbolLayers.Add(outline); symbolLayers.Add(solidColorHatch); return new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }; })); }
public void UpdateColor(string colorValue) { // Update Status Color for Selected Point and Polygon Graphics QueuedTask.Run(() => { // Take the currently selected text and update it as needed // get the first graphics layer in the map's collection of graphics layers var graphicsLayer = MapView.Active.Map.GetLayersAsFlattenedList() .OfType <ArcGIS.Desktop.Mapping.GraphicsLayer>().FirstOrDefault(); if (graphicsLayer == null) { return; } var selectedGraphicLayers = MapView.Active.GetSelectedLayers().OfType <GraphicsLayer>(); if (selectedGraphicLayers.Count() == 0) { //nothing selected. So clear the selected graphic layer. SelectedGraphicsLayerTOC = null; MessageBox.Show("No graphic layer selected.", "Select layer"); return; } SelectedGraphicsLayerTOC = selectedGraphicLayers.FirstOrDefault(); var selectedElements = graphicsLayer.GetSelectedElements(). OfType <GraphicElement>().Where(elem => elem.GetGraphic() is CIMPolygonGraphic || elem.GetGraphic() is CIMPointGraphic); if (selectedElements.Count() == 0) { //nothing selected. So clear the selected graphic layer. MessageBox.Show("No point or polygon workflow graphics selected.", "Select graphics"); return; } CIMColor myColor = null; switch (colorValue) { case "red": myColor = CIMColor.CreateRGBColor(255, 0, 0, 40); break; case "yellow": myColor = CIMColor.CreateRGBColor(255, 255, 0, 40); break; case "green": myColor = CIMColor.CreateRGBColor(0, 255, 0, 40); break; } foreach (var elem in selectedElements) { // Get the CIM Graphic and update it if (elem.GetGraphic() is CIMPolygonGraphic) { var newCIMGraphic = elem.GetGraphic() as CIMPolygonGraphic; CIMPolygonSymbol polySymbol = SymbolFactory.Instance.ConstructPolygonSymbol(myColor); // (CIMColor.CreateRGBColor(CreateRGBColor(0, 255, 0, 50)); newCIMGraphic.Symbol = polySymbol.MakeSymbolReference(); elem.SetGraphic(newCIMGraphic); } if (elem.GetGraphic() is CIMPointGraphic) { var newCIMGraphic = elem.GetGraphic() as CIMPointGraphic; CIMPointSymbol pointSymbol = SymbolFactory.Instance.ConstructPointSymbol(myColor); // (CIMColor.CreateRGBColor(CreateRGBColor(0, 255, 0, 50)); newCIMGraphic.Symbol = pointSymbol.MakeSymbolReference(); elem.SetGraphic(newCIMGraphic); } } }); }
/// <summary> /// Warning! You must call this method on the MCT! /// </summary> /// <returns></returns> private CIMRenderer CreateUniqueValueRendererForUSStates() { //All of these methods have to be called on the MCT if (Module1.OnUIThread) { throw new CalledOnWrongThreadException(); } //Create the Unique Value Renderer CIMUniqueValueRenderer uniqueValueRenderer = new CIMUniqueValueRenderer() { // set the value field Fields = new string[] { "STATE_NAME" } }; //Construct the list of UniqueValueClasses List <CIMUniqueValueClass> classes = new List <CIMUniqueValueClass>(); // Alabama List <CIMUniqueValue> alabamaValues = new List <CIMUniqueValue>(); CIMUniqueValue alabamaValue = new CIMUniqueValue() { FieldValues = new string[] { "Alabama" } }; alabamaValues.Add(alabamaValue); var alabamaColor = CIMColor.CreateRGBColor(255, 170, 0); var alabama = new CIMUniqueValueClass() { Values = alabamaValues.ToArray(), Label = "Alabama", Visible = true, Editable = true, Symbol = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(alabamaColor) } }; classes.Add(alabama); // Alaska List <CIMUniqueValue> alaskaValues = new List <CIMUniqueValue>(); CIMUniqueValue alaskaValue = new CIMUniqueValue() { FieldValues = new string[] { "Alaska" } }; alaskaValues.Add(alaskaValue); var alaskaColor = CIMColor.CreateRGBColor(255, 0, 0); var alaska = new CIMUniqueValueClass() { Values = alaskaValues.ToArray(), Label = "Alaska", Visible = true, Editable = true, Symbol = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(alaskaColor) } }; classes.Add(alaska); // California List <CIMUniqueValue> californiaValues = new List <CIMUniqueValue>(); CIMUniqueValue californiaValue = new CIMUniqueValue() { FieldValues = new string[] { "California" } }; californiaValues.Add(californiaValue); var californiaColor = CIMColor.CreateRGBColor(85, 255, 0); var california = new CIMUniqueValueClass() { Values = californiaValues.ToArray(), Label = "California", Visible = true, Editable = true, Symbol = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(californiaColor) } }; classes.Add(california); // Colorado List <CIMUniqueValue> coloradoValues = new List <CIMUniqueValue>(); CIMUniqueValue coloradoValue = new CIMUniqueValue() { FieldValues = new string[] { "Colorado" } }; coloradoValues.Add(coloradoValue); var coloradoColor = CIMColor.CreateRGBColor(0, 92, 230); var colorado = new CIMUniqueValueClass() { Values = coloradoValues.ToArray(), Label = "Colorado", Visible = true, Editable = true, Symbol = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(coloradoColor) } }; classes.Add(colorado); // so on and so forth for all the 51. //.... //Add the classes to a group (by default there is only one group or "symbol level") // Unique value groups CIMUniqueValueGroup groupOne = new CIMUniqueValueGroup() { Heading = "State Names", Classes = classes.ToArray() }; uniqueValueRenderer.Groups = new CIMUniqueValueGroup[] { groupOne }; //Draw the rest with the default symbol uniqueValueRenderer.UseDefaultSymbol = true; uniqueValueRenderer.DefaultLabel = "All other values"; var defaultColor = CIMColor.CreateRGBColor(215, 215, 215); uniqueValueRenderer.DefaultSymbol = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(defaultColor) }; return(uniqueValueRenderer as CIMRenderer); }
private void CreateLayer() { Map map = MapView.Active.Map; #region Create layer with create-params var flyrCreatnParam = new FeatureLayerCreationParams(new Uri(@"c:\data\world.gdb\cities")) { Name = "World Cities", IsVisible = false, MinimumScale = 1000000, MaximumScale = 5000, DefinitionFilter = new CIMDefinitionFilter() { DefinitionExpression = "Population > 100000", Name = "More than 100k" }, RendererDefinition = new SimpleRendererDefinition() { SymbolTemplate = SymbolFactory.Instance.ConstructPointSymbol(CIMColor.CreateRGBColor(255, 0, 0), 8, SimpleMarkerStyle.Hexagon).MakeSymbolReference() } }; var featureLayer = LayerFactory.Instance.CreateLayer <FeatureLayer>(flyrCreatnParam, map, LayerPosition.AutoArrange); #endregion #region Create a subtype group layer var subtypeGroupLayerCreateParam = new SubtypeGroupLayerCreationParams ( new Uri(@"c:\data\SubtypeAndDomain.gdb\Fittings") ); #region Define Subtype layers subtypeGroupLayerCreateParam.SubtypeLayers = new List <SubtypeFeatureLayerCreationParams>() { //define first subtype layer with unique value renderer new SubtypeFeatureLayerCreationParams() { SubtypeId = 1, RendererDefinition = new UniqueValueRendererDefinition(new string[] { "type" }) }, //define second subtype layer with simple symbol renderer new SubtypeFeatureLayerCreationParams() { SubtypeId = 2, RendererDefinition = new SimpleRendererDefinition() { SymbolTemplate = SymbolFactory.Instance.ConstructPointSymbol(CIMColor.CreateRGBColor(255, 0, 0), 8, SimpleMarkerStyle.Hexagon).MakeSymbolReference() } } }; #endregion #region Define additional parameters subtypeGroupLayerCreateParam.DefinitionFilter = new CIMDefinitionFilter() { Name = "IsActive", DefinitionExpression = "Enabled = 1" }; subtypeGroupLayerCreateParam.IsVisible = true; subtypeGroupLayerCreateParam.MinimumScale = 50000; #endregion SubtypeGroupLayer subtypeGroupLayer = LayerFactory.Instance.CreateLayer <SubtypeGroupLayer>(subtypeGroupLayerCreateParam, map); #endregion }
internal async void UpdateCluster(bool isTolerance) { if (MapView.Active == null) { return; } // Get Layer Name string inputFC = SelectedLayer.Name; int minPoints = 2; bool parsed = Int32.TryParse(MinPoints, out minPoints); /// Set PYT path -This could be inserted as a resource file // string tool_path = "C:\\Dev_summit\\2018\\InteractiveAnalytics\\pyt\\UpdateCluster.pyt\\UpdateClusterTool"; IReadOnlyList <string> args = null; if (isTolerance) { /// Arguments for executing process using Tolerance args = Geoprocessing.MakeValueArray(inputFC, minPoints, ValueSlider, -1); } else { /// Arguments for executing process using Threshold args = Geoprocessing.MakeValueArray(inputFC, minPoints, -1, ValueThreshold); } Task <IGPResult> task; /// Execute the Tool in the python toolbox task = Geoprocessing.ExecuteToolAsync(tool_path, args, flags: GPExecuteToolFlags.AddToHistory); StyleProjectItem style; CIMPointSymbol pointSymbol = null; /// Get Pro Styles style = await QueuedTask.Run <StyleProjectItem>(() => Project.Current.GetItems <StyleProjectItem>().First(s => s.Name == "ArcGIS 2D")); await QueuedTask.Run(() => { /// Search for a specific Symbol /// Other styles Arcgis/Resouces/Styles/Styles.stylx SQLite DB SymbolStyleItem symbolStyleItem = (SymbolStyleItem)style.LookupItem(StyleItemType.PointSymbol, "Circle 1_Shapes_3"); pointSymbol = (CIMPointSymbol)symbolStyleItem.Symbol; /// Cluster Ids based in Color Schema int[] ids = new int[] { -1, 1, 2, 3, 4, 5, 6, 7, 8 }; /// Set Colors string[] colors = new string[] { "156,156,156", "166,206,227", "31,120,180", "178,223,138", "51,160,44", "251,154,153", "227,26,28", "253,191,111", "255,127,0" }; /// Color Field String[] fields = new string[] { "COLOR_ID" }; /// Make a reference of the point symbol CIMSymbolReference symbolPointTemplate = pointSymbol.MakeSymbolReference(); /// Get definition of type symbology unique values UniqueValueRendererDefinition uniqueValueRendererDef = new UniqueValueRendererDefinition(fields, symbolPointTemplate, null, symbolPointTemplate, false); /// Get Current renderer of the Selected Layer CIMUniqueValueRenderer renderer = (CIMUniqueValueRenderer)SelectedLayer.CreateRenderer(uniqueValueRendererDef); CIMUniqueValueClass[] newClasses = new CIMUniqueValueClass[colors.Count()]; /// Get Point Symbol as string for creating other point colors string point = pointSymbol.ToXml(); /// Create Each Color for (int i = 0; i < ids.Length; i++) { CIMPointSymbol npoint = CIMPointSymbol.FromXml(point); if (ids[i] == -1) { npoint.SetSize(4); } else { npoint.SetSize(6); } CIMSymbolReference symbolPointTemplatei = npoint.MakeSymbolReference(); newClasses[i] = new CIMUniqueValueClass(); newClasses[i].Values = new CIMUniqueValue[1]; newClasses[i].Values[0] = new CIMUniqueValue(); newClasses[i].Values[0].FieldValues = new string[1]; newClasses[i].Values[0].FieldValues[0] = ids[i].ToString(); newClasses[i].Label = ids[i].ToString(); newClasses[i].Symbol = symbolPointTemplatei; var color = colors[i].Split(','); double r = Convert.ToDouble(color[0]); double g = Convert.ToDouble(color[1]); double b = Convert.ToDouble(color[2]); newClasses[i].Symbol.Symbol.SetColor(CIMColor.CreateRGBColor(r, g, b)); } /// Add Colors into the renderer renderer.Groups[0].Classes = newClasses; /// Apply new renderer in the layer SelectedLayer.SetRenderer(renderer); //SelectedLayer.RecalculateRenderer(); }); }
/// <summary> /// On activating this MapTool, the sketch segment symbology is modified along with the symbologies of the /// unselected current and unselected regular vertices of the sketch. /// The SketchSymbol property of the MapTool is also modified, which is different from the sketch segment and vertices. /// This property is used to customize the fixed part of the sketch, i.e. the part of the sketch that shows you what the /// output will look like if you finish the sketch right then without doing any more edits. /// </summary> /// <param name="active"></param> /// <returns></returns> protected override Task OnToolActivateAsync(bool active) { var darkBlue = new CIMRGBColor() { R = 0, G = 76, B = 153 }; var lightBlue = new CIMRGBColor() { R = 102, G = 178, B = 255 }; var darkGreen = new CIMRGBColor() { R = 0, G = 153, B = 0 }; var lightGreen = new CIMRGBColor() { R = 102, G = 255, B = 102 }; var red = new CIMRGBColor() { R = 153, G = 0, B = 0 }; var white = new CIMRGBColor() { R = 255, G = 255, B = 255 }; //return base.OnToolActivateAsync(active); return(QueuedTask.Run(() => { //Getting the current symbology options of the segment var segmentOptions = GetSketchSegmentSymbolOptions(); //Modifying the primary color, secondary color, and the width of the segment symbology options segmentOptions.PrimaryColor = darkBlue; segmentOptions.Width = 1.5; segmentOptions.SecondaryColor = lightBlue; //Creating a new vertex symbol options instances with the values you want //Vertex symbol options instance 1 var vertexOptions = new VertexSymbolOptions(VertexSymbolType.RegularUnselected); vertexOptions.Color = darkGreen; vertexOptions.MarkerType = VertexMarkerType.Circle; vertexOptions.OutlineColor = lightGreen; vertexOptions.OutlineWidth = 4; vertexOptions.Size = 8; //Vertex symbol options instance 2 var vertexOptions2 = new VertexSymbolOptions(VertexSymbolType.CurrentUnselected); vertexOptions2.Color = white; vertexOptions2.OutlineColor = red; vertexOptions2.MarkerType = VertexMarkerType.PushPin; vertexOptions2.OutlineWidth = 5; vertexOptions2.Size = 10; try { //Setting the value of the segment symbol options SetSketchSegmentSymbolOptions(segmentOptions); //Setting the value of the vertex symbol options of the regular unselected vertices using the vertexOptions instance 1 created above. SetSketchVertexSymbolOptions(VertexSymbolType.RegularUnselected, vertexOptions); //Setting symbol options of current unselected vertex SetSketchVertexSymbolOptions(VertexSymbolType.CurrentUnselected, vertexOptions2); //Similarly you can set symbol options for current selected vertex and regular selected vertex //SetSketchVertexSymbolOptions(VertexSymbolType.CurrentSelected, vertexOptions3); //SetSketchVertexSymbolOptions(VertexSymbolType.RegularSelected, vertexOptions4); //Modifying the SketchSymbol property of the MapTool var yellow = CIMColor.CreateRGBColor(255, 215, 0); var cimLineSymbol = SymbolFactory.Instance.ConstructLineSymbol(yellow, 4, SimpleLineStyle.DashDotDot); base.SketchSymbol = cimLineSymbol.MakeSymbolReference(); } catch (Exception ex) { System.Diagnostics.Debug.WriteLine($@"Unexpected Exception: {ex}"); } })); }
protected override Task OnToolActivateAsync(bool active) { _lineSymbol = SymbolFactory.Instance.ConstructLineSymbol(CIMColor.CreateRGBColor(0, 0, 0), 4.0, SimpleLineStyle.Solid); return(base.OnToolActivateAsync(active)); }
protected override Task OnToolActivateAsync(bool active) { _polygonSymbol = SymbolFactory.Instance.ConstructPolygonSymbol(CIMColor.CreateRGBColor(255, 255, 0)); return(base.OnToolActivateAsync(active)); }
public async void Example6() { Map map = MapView.Active.Map; await QueuedTask.Run(() => { StreamLayer streamLayer = null; //https://geoeventsample1.esri.com:6443/arcgis/rest/services/AirportTraffics/StreamServer #region Defining a unique value renderer definition var uvrDef = new UniqueValueRendererDefinition() { ValueFields = new string[] { "ACTYPE" }, SymbolTemplate = SymbolFactory.Instance.ConstructPointSymbol( ColorFactory.Instance.RedRGB, 10, SimpleMarkerStyle.Hexagon) .MakeSymbolReference(), ValuesLimit = 5 }; //Note: CreateRenderer can only create value classes based on //the current events it has received streamLayer.SetRenderer(streamLayer.CreateRenderer(uvrDef)); #endregion #region Setting a unique value renderer for latest observations //Define the classes by hand to avoid using CreateRenderer(...) CIMUniqueValueClass uvcB727 = new CIMUniqueValueClass() { Values = new CIMUniqueValue[] { new CIMUniqueValue() { FieldValues = new string[] { "B727" } } }, Visible = true, Label = "Boeing 727", Symbol = SymbolFactory.Instance.ConstructPointSymbol(CIMColor.CreateRGBColor(255, 0, 0), 8, SimpleMarkerStyle.Hexagon).MakeSymbolReference() }; CIMUniqueValueClass uvcD9 = new CIMUniqueValueClass() { Values = new CIMUniqueValue[] { new CIMUniqueValue() { FieldValues = new string[] { "DC9" } } }, Visible = true, Label = "DC 9", Symbol = SymbolFactory.Instance.ConstructPointSymbol(CIMColor.CreateRGBColor(0, 255, 0), 8, SimpleMarkerStyle.Hexagon).MakeSymbolReference() }; //Assign the classes to a group CIMUniqueValueGroup uvGrp = new CIMUniqueValueGroup() { Classes = new CIMUniqueValueClass[] { uvcB727, uvcD9 } }; //assign the group to the renderer var UVrndr = new CIMUniqueValueRenderer() { Fields = new string[] { "ACTYPE" }, Groups = new CIMUniqueValueGroup[] { uvGrp }, UseDefaultSymbol = true, DefaultLabel = "Others", DefaultSymbol = SymbolFactory.Instance.ConstructPointSymbol( CIMColor.CreateRGBColor(185, 185, 185), 8, SimpleMarkerStyle.Hexagon).MakeSymbolReference() }; //set the renderer. Depending on the current events recieved, the //layer may or may not have events for each of the specified //unique value classes streamLayer.SetRenderer(UVrndr); #endregion #region Setting a unique value renderer for previous observations //The layer must be track aware and spatial if (streamLayer.TrackType != TrackType.Spatial) { return; } //Must be on QueuedTask! //Define unique value classes same as we do for current observations //or use "CreateRenderer(...)" to assign them automatically CIMUniqueValueClass uvcB727Prev = new CIMUniqueValueClass() { Values = new CIMUniqueValue[] { new CIMUniqueValue() { FieldValues = new string[] { "B727" } } }, Visible = true, Label = "Boeing 727", Symbol = SymbolFactory.Instance.ConstructPointSymbol( CIMColor.CreateRGBColor(255, 0, 0), 4, SimpleMarkerStyle.Hexagon) .MakeSymbolReference() }; CIMUniqueValueClass uvcD9Prev = new CIMUniqueValueClass() { Values = new CIMUniqueValue[] { new CIMUniqueValue() { FieldValues = new string[] { "DC9" } } }, Visible = true, Label = "DC 9", Symbol = SymbolFactory.Instance.ConstructPointSymbol( CIMColor.CreateRGBColor(0, 255, 0), 4, SimpleMarkerStyle.Hexagon) .MakeSymbolReference() }; CIMUniqueValueGroup uvGrpPrev = new CIMUniqueValueGroup() { Classes = new CIMUniqueValueClass[] { uvcB727Prev, uvcD9Prev } }; var UVrndrPrev = new CIMUniqueValueRenderer() { Fields = new string[] { "ACTYPE" }, Groups = new CIMUniqueValueGroup[] { uvGrpPrev }, UseDefaultSymbol = true, DefaultLabel = "Others", DefaultSymbol = SymbolFactory.Instance.ConstructPointSymbol( CIMColor.CreateRGBColor(185, 185, 185), 4, SimpleMarkerStyle.Hexagon) .MakeSymbolReference() }; #endregion #region Setting a simple renderer to draw track lines //The layer must be track aware and spatial if (streamLayer.TrackType != TrackType.Spatial) { return; } //Must be on QueuedTask! //Note: only a simple renderer with solid line symbol is supported for track //line renderer var trackRenderer = new SimpleRendererDefinition() { SymbolTemplate = SymbolFactory.Instance.ConstructLineSymbol( ColorFactory.Instance.BlueRGB, 2, SimpleLineStyle.Solid) .MakeSymbolReference() }; streamLayer.SetRenderer( streamLayer.CreateRenderer(trackRenderer), FeatureRendererTarget.TrackLines); #endregion #region Check Previous Observation and Track Line Visibility //The layer must be track aware and spatial for these settings //to have an effect if (streamLayer.TrackType != TrackType.Spatial) { return; } //Must be on QueuedTask if (!streamLayer.AreTrackLinesVisible) { streamLayer.SetTrackLinesVisibility(true); } if (!streamLayer.ArePreviousObservationsVisible) { streamLayer.SetPreviousObservationsVisibility(true); } #endregion #region Make Track Lines and Previous Observations Visible //The layer must be track aware and spatial for these settings //to have an effect if (streamLayer.TrackType != TrackType.Spatial) { return; } //Must be on QueuedTask //Note: Setting PreviousObservationsCount larger than the //"SetExpirationMaxCount()" has no effect streamLayer.SetPreviousObservationsCount(6); if (!streamLayer.AreTrackLinesVisible) { streamLayer.SetTrackLinesVisibility(true); } if (!streamLayer.ArePreviousObservationsVisible) { streamLayer.SetPreviousObservationsVisibility(true); } #endregion #region Retrieve the current observation renderer //Must be on QueuedTask! var renderer = streamLayer.GetRenderer(); #endregion #region Retrieve the previous observation renderer //The layer must be track aware and spatial if (streamLayer.TrackType != TrackType.Spatial) { return; } //Must be on QueuedTask! var prev_renderer = streamLayer.GetRenderer( FeatureRendererTarget.PreviousObservations); #endregion #region Retrieve the track lines renderer //The layer must be track aware and spatial if (streamLayer.TrackType != TrackType.Spatial) { return; } //Must be on QueuedTask! var track_renderer = streamLayer.GetRenderer( FeatureRendererTarget.TrackLines); #endregion }); }
public async void Example4() { Map map = MapView.Active.Map; await QueuedTask.Run(() => { //StreamLayer streamLayer = null; // #region Setting a unique value renderer for latest observations var url = @"https://geoeventsample1.esri.com:6443/arcgis/rest/services/AirportTraffics/StreamServer"; var uri = new Uri(url, UriKind.Absolute); //Must be on QueuedTask! var createParams = new FeatureLayerCreationParams(uri) { IsVisible = false }; var streamLayer = LayerFactory.Instance.CreateLayer <StreamLayer>( createParams, map); //Define the unique values by hand var uvr = new CIMUniqueValueRenderer() { Fields = new string[] { "ACTYPE" }, UseDefaultSymbol = true, DefaultLabel = "Others", DefaultSymbol = SymbolFactory.Instance.ConstructPointSymbol( CIMColor.CreateRGBColor(185, 185, 185), 8, SimpleMarkerStyle.Hexagon).MakeSymbolReference() }; var classes = new List <CIMUniqueValueClass>(); //add in classes - one for ACTYPE of 727, one for DC 9 classes.Add( new CIMUniqueValueClass() { Values = new CIMUniqueValue[] { new CIMUniqueValue() { FieldValues = new string[] { "B727" } } }, Visible = true, Label = "Boeing 727", Symbol = SymbolFactory.Instance.ConstructPointSymbol( ColorFactory.Instance.RedRGB, 10, SimpleMarkerStyle.Hexagon).MakeSymbolReference() }); classes.Add( new CIMUniqueValueClass() { Values = new CIMUniqueValue[] { new CIMUniqueValue() { FieldValues = new string[] { "DC9" } } }, Visible = true, Label = "DC 9", Symbol = SymbolFactory.Instance.ConstructPointSymbol( ColorFactory.Instance.GreenRGB, 10, SimpleMarkerStyle.Hexagon).MakeSymbolReference() }); //add the classes to a group var groups = new List <CIMUniqueValueGroup>() { new CIMUniqueValueGroup() { Classes = classes.ToArray() } }; //add the groups to the renderer uvr.Groups = groups.ToArray(); //Apply the renderer (for current observations) streamLayer.SetRenderer(uvr); streamLayer.SetVisibility(true);//turn on the layer #endregion }); }
public static async Task DisplayMaps(string strAoiPath) { BA_Objects.Aoi oAoi = Module1.Current.Aoi; if (String.IsNullOrEmpty(oAoi.Name)) { if (System.IO.Directory.Exists(strAoiPath)) { // Initialize AOI object oAoi = new BA_Objects.Aoi("animas_AOI_prms", strAoiPath); // Store current AOI in Module1 Module1.Current.Aoi = oAoi; } else { ArcGIS.Desktop.Framework.Dialogs.MessageBox.Show("!!Please set an AOI before testing the maps", "BAGIS Pro"); } } Map oMap = await MapTools.SetDefaultMapNameAsync(Constants.MAPS_DEFAULT_MAP_NAME); if (oMap != null) { if (oMap.Layers.Count() > 0) { string strMessage = "Adding the maps to the display will overwrite the current arrangement of data layers. " + "This action cannot be undone." + System.Environment.NewLine + "Do you wish to continue ?"; MessageBoxResult oRes = ArcGIS.Desktop.Framework.Dialogs.MessageBox.Show(strMessage, "BAGIS", MessageBoxButton.YesNo); if (oRes != MessageBoxResult.Yes) { return; } } Layout layout = await MapTools.GetDefaultLayoutAsync(Constants.MAPS_DEFAULT_LAYOUT_NAME); if (layout != null) { bool bFoundIt = false; //A layout view may exist but it may not be active //Iterate through each pane in the application and check to see if the layout is already open and if so, activate it foreach (var pane in ProApp.Panes) { if (!(pane is ILayoutPane layoutPane)) //if not a layout view, continue to the next pane { continue; } if (layoutPane.LayoutView.Layout == layout) //if there is a match, activate the view { (layoutPane as Pane).Activate(); bFoundIt = true; } } if (!bFoundIt) { ILayoutPane iNewLayoutPane = await ProApp.Panes.CreateLayoutPaneAsync(layout); //GUI thread } await MapTools.SetDefaultMapFrameDimensionAsync(Constants.MAPS_DEFAULT_MAP_FRAME_NAME, layout, oMap, 1.0, 2.0, 7.5, 9.0); //remove existing layers from map frame await MapTools.RemoveLayersfromMapFrame(); //add aoi boundary to map and zoom to layer string strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Aoi, true) + Constants.FILE_AOI_VECTOR; Uri aoiUri = new Uri(strPath); await MapTools.AddAoiBoundaryToMapAsync(aoiUri, Constants.MAPS_AOI_BOUNDARY); //add Snotel Represented Area Layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Analysis, true) + Constants.FILE_SNOTEL_REPRESENTED; Uri uri = new Uri(strPath); CIMColor fillColor = CIMColor.CreateRGBColor(255, 0, 0, 50); //Red with 30% transparency BA_ReturnCode success = await MapTools.AddPolygonLayerAsync(uri, fillColor, false, Constants.MAPS_SNOTEL_REPRESENTED); if (success.Equals(BA_ReturnCode.Success)) { Module1.ToggleState("MapButtonPalette_BtnSnotel_State"); } // add aoi streams layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Layers, true) + Constants.FILE_STREAMS; uri = new Uri(strPath); await MapTools.AddLineLayerAsync(uri, Constants.MAPS_STREAMS, ColorFactory.Instance.BlueRGB); // add Snotel Layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Layers, true) + Constants.FILE_SNOTEL; uri = new Uri(strPath); success = await MapTools.AddPointMarkersAsync(uri, Constants.MAPS_SNOTEL, ColorFactory.Instance.BlueRGB, SimpleMarkerStyle.X, 16); if (success == BA_ReturnCode.Success) { Module1.Current.AoiHasSnotel = true; } // add Snow Course Layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Layers, true) + Constants.FILE_SNOW_COURSE; uri = new Uri(strPath); success = await MapTools.AddPointMarkersAsync(uri, Constants.MAPS_SNOW_COURSE, CIMColor.CreateRGBColor(0, 255, 255), SimpleMarkerStyle.Star, 16); if (success == BA_ReturnCode.Success) { Module1.Current.AoiHasSnowCourse = true; } // add hillshade layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Surfaces, true) + Constants.FILE_HILLSHADE; uri = new Uri(strPath); await MapTools.DisplayRasterAsync(uri, Constants.MAPS_HILLSHADE, 0); // add elev zones layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Analysis, true) + Constants.FILE_ELEV_ZONE; uri = new Uri(strPath); await MapTools.DisplayRasterWithSymbolAsync(uri, Constants.MAPS_ELEV_ZONE, "ArcGIS Colors", "Elevation #2", "NAME", 30, true); Module1.ToggleState("MapButtonPalette_BtnElevation_State"); // add slope zones layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Analysis, true) + Constants.FILE_SLOPE_ZONE; uri = new Uri(strPath); await MapTools.DisplayRasterWithSymbolAsync(uri, Constants.MAPS_SLOPE_ZONE, "ArcGIS Colors", "Slope", "NAME", 30, false); Module1.ToggleState("MapButtonPalette_BtnSlope_State"); // add aspect zones layer strPath = GeodatabaseTools.GetGeodatabasePath(oAoi.FilePath, GeodatabaseNames.Analysis, true) + Constants.FILE_ASPECT_ZONE; uri = new Uri(strPath); await MapTools.DisplayRasterWithSymbolAsync(uri, Constants.MAPS_ASPECT_ZONE, "ArcGIS Colors", "Aspect", "NAME", 30, false); Module1.ToggleState("MapButtonPalette_BtnAspect_State"); // create map elements await MapTools.AddMapElements(Constants.MAPS_DEFAULT_LAYOUT_NAME, "ArcGIS Colors", "1.5 Point"); await MapTools.DisplayNorthArrowAsync(layout, Constants.MAPS_DEFAULT_MAP_FRAME_NAME); await MapTools.DisplayScaleBarAsync(layout, Constants.MAPS_DEFAULT_MAP_FRAME_NAME); // update map elements for default map (elevation) BA_Objects.MapDefinition defaultMap = MapTools.LoadMapDefinition(BagisMapType.ELEVATION); await MapTools.UpdateMapElementsAsync(layout, Module1.Current.Aoi.Name.ToUpper(), defaultMap); await MapTools.UpdateLegendAsync(layout, defaultMap); //zoom to aoi boundary layer double bufferFactor = 1.1; bool bZoomed = await MapTools.ZoomToExtentAsync(aoiUri, bufferFactor); } } }
public void btnChangeRoomSymbology(object sender, EventArgs e) { var polygonSymbology = ((RadioButton)sender).Tag; QueuedTask.Run(() => { //Get the active map's definition - CIMMap. if (polygonSymbology.ToString() == "None") { var cimMap = MapView.Active.Map.GetDefinition(); Debug.WriteLine(cimMap.ToString()); Debug.WriteLine(cimMap.ToXml()); //FeatureLayer a = MapView.Active.Map.Layers[1] as FeatureLayer; var lyr = MapView.Active.Map.GetLayersAsFlattenedList().OfType <FeatureLayer>().FirstOrDefault(s => s.ShapeType == esriGeometryType.esriGeometryPolygon); CIMSimpleRenderer renderer = lyr.GetRenderer() as CIMSimpleRenderer; CIMStroke outline = SymbolFactory.Instance.ConstructStroke( ColorFactory.Instance.GreyRGB, 0.5, SimpleLineStyle.Solid); CIMPolygonSymbol fillWithOutline = SymbolFactory.Instance.ConstructPolygonSymbol( ColorFactory.Instance.CreateRGBColor(255, 255, 255), SimpleFillStyle.Solid, outline); //Update the symbol of the current simple renderer renderer.Symbol = fillWithOutline.MakeSymbolReference(); //Update the feature layer renderer lyr.SetRenderer(renderer); } if (polygonSymbology.ToString() == "Multicolor1") { Debug.WriteLine("Multicolor1"); var cimMap = MapView.Active.Map.GetDefinition(); //FeatureLayer a = MapView.Active.Map.Layers[1] as FeatureLayer; var lyr = MapView.Active.Map.GetLayersAsFlattenedList().OfType <FeatureLayer>().FirstOrDefault(s => s.ShapeType == esriGeometryType.esriGeometryPolygon); CIMUniqueValueRenderer renderer = lyr.GetRenderer() as CIMUniqueValueRenderer; // color ramp CIMICCColorSpace colorSpace = new CIMICCColorSpace() { URL = "Default RGB" }; CIMRandomHSVColorRamp randomHSVColorRamp = new CIMRandomHSVColorRamp() { ColorSpace = colorSpace, MinAlpha = 100, MaxAlpha = 100, MinH = 0, MaxH = 360, MinS = 15, MaxS = 30, MinV = 99, MaxV = 100, Seed = 0 }; UniqueValueRendererDefinition uvr = new UniqueValueRendererDefinition() { ValueFields = new string[] { "GROUP_DESCRIPTION" }, //multiple fields in the array if needed. ColorRamp = randomHSVColorRamp //Specify color ramp }; var r = lyr.CreateRenderer(uvr); //var sc = r.GetSchema(); lyr.SetRenderer(r); CIMUniqueValueRenderer r2 = lyr.GetRenderer() as CIMUniqueValueRenderer; foreach (var item in r2.Groups) { var g = item as CIMUniqueValueGroup; foreach (var c in g.Classes) { if (c.Label == "Multiple") //change this to 'Multiple' { //example for simple color //var alaskaColor = CIMColor.CreateRGBColor(255, 0, 0); //var s = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(alaskaColor) }; List <CIMSymbolLayer> symbolLayers = new List <CIMSymbolLayer>(); CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, 50.0), 2.0, SimpleLineStyle.Solid); symbolLayers.Add(outline); var solid = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(255, 0, 0, 50.0), 1.0, SimpleLineStyle.Solid); CIMHatchFill h = new CIMHatchFill() { Enable = true, Rotation = -45.0, Separation = 5.0, LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1] { solid } } }; symbolLayers.Add(h); CIMPolygonSymbol p = new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }; var s = new CIMSymbolReference() { Symbol = p }; c.Symbol = s; } } } lyr.SetRenderer(r2); } if (polygonSymbology.ToString() == "Multicolor2") { Debug.WriteLine("Multicolor2"); var cimMap = MapView.Active.Map.GetDefinition(); //FeatureLayer a = MapView.Active.Map.Layers[1] as FeatureLayer; var lyr = MapView.Active.Map.GetLayersAsFlattenedList().OfType <FeatureLayer>().FirstOrDefault(s => s.ShapeType == esriGeometryType.esriGeometryPolygon); CIMUniqueValueRenderer renderer = lyr.GetRenderer() as CIMUniqueValueRenderer; // color ramp CIMICCColorSpace colorSpace = new CIMICCColorSpace() { URL = "Default RGB" }; CIMRandomHSVColorRamp randomHSVColorRamp = new CIMRandomHSVColorRamp() { ColorSpace = colorSpace, MinAlpha = 100, MaxAlpha = 100, MinH = 0, MaxH = 360, MinS = 15, MaxS = 30, MinV = 99, MaxV = 100, Seed = 0 }; UniqueValueRendererDefinition uvr = new UniqueValueRendererDefinition() { ValueFields = new string[] { "FUNCTION_DESCRIPTION" }, //multiple fields in the array if needed. ColorRamp = randomHSVColorRamp //Specify color ramp }; var r = lyr.CreateRenderer(uvr); //var sc = r.GetSchema(); lyr.SetRenderer(r); CIMUniqueValueRenderer r2 = lyr.GetRenderer() as CIMUniqueValueRenderer; foreach (var item in r2.Groups) { var g = item as CIMUniqueValueGroup; foreach (var c in g.Classes) { if (c.Label == "Multiple") //change this to 'Multiple' { //example for simple color //var alaskaColor = CIMColor.CreateRGBColor(255, 0, 0); //var s = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(alaskaColor) }; List <CIMSymbolLayer> symbolLayers = new List <CIMSymbolLayer>(); CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, 50.0), 2.0, SimpleLineStyle.Solid); symbolLayers.Add(outline); var solid = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(255, 0, 0, 50.0), 1.0, SimpleLineStyle.Solid); CIMHatchFill h = new CIMHatchFill() { Enable = true, Rotation = -45.0, Separation = 5.0, LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1] { solid } } }; symbolLayers.Add(h); CIMPolygonSymbol p = new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }; var s = new CIMSymbolReference() { Symbol = p }; c.Symbol = s; } } } lyr.SetRenderer(r2); } if (polygonSymbology.ToString() == "Multicolor3") { Debug.WriteLine("Multicolor2"); var cimMap = MapView.Active.Map.GetDefinition(); //FeatureLayer a = MapView.Active.Map.Layers[1] as FeatureLayer; var lyr = MapView.Active.Map.GetLayersAsFlattenedList().OfType <FeatureLayer>().FirstOrDefault(s => s.ShapeType == esriGeometryType.esriGeometryPolygon); CIMUniqueValueRenderer renderer = lyr.GetRenderer() as CIMUniqueValueRenderer; // color ramp CIMICCColorSpace colorSpace = new CIMICCColorSpace() { URL = "Default RGB" }; CIMRandomHSVColorRamp randomHSVColorRamp = new CIMRandomHSVColorRamp() { ColorSpace = colorSpace, MinAlpha = 100, MaxAlpha = 100, MinH = 0, MaxH = 360, MinS = 15, MaxS = 30, MinV = 99, MaxV = 100, Seed = 0 }; UniqueValueRendererDefinition uvr = new UniqueValueRendererDefinition() { ValueFields = new string[] { "USE_CODE_DESCRIPTION" }, //multiple fields in the array if needed. ColorRamp = randomHSVColorRamp //Specify color ramp }; var r = lyr.CreateRenderer(uvr); //var sc = r.GetSchema(); lyr.SetRenderer(r); CIMUniqueValueRenderer r2 = lyr.GetRenderer() as CIMUniqueValueRenderer; foreach (var item in r2.Groups) { var g = item as CIMUniqueValueGroup; foreach (var c in g.Classes) { if (c.Label == "Multiple") //change this to 'Multiple' { //example for simple color //var alaskaColor = CIMColor.CreateRGBColor(255, 0, 0); //var s = new CIMSymbolReference() { Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(alaskaColor) }; List <CIMSymbolLayer> symbolLayers = new List <CIMSymbolLayer>(); CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, 50.0), 2.0, SimpleLineStyle.Solid); symbolLayers.Add(outline); var solid = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(255, 0, 0, 50.0), 1.0, SimpleLineStyle.Solid); CIMHatchFill h = new CIMHatchFill() { Enable = true, Rotation = -45.0, Separation = 5.0, LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1] { solid } } }; symbolLayers.Add(h); CIMPolygonSymbol p = new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }; var s = new CIMSymbolReference() { Symbol = p }; c.Symbol = s; } } } lyr.SetRenderer(r2); } if (polygonSymbology.ToString() == "Beige") { var cimMap = MapView.Active.Map.GetDefinition(); //FeatureLayer a = MapView.Active.Map.Layers[1] as FeatureLayer; var lyr = MapView.Active.Map.GetLayersAsFlattenedList().OfType <FeatureLayer>().FirstOrDefault(s => s.ShapeType == esriGeometryType.esriGeometryPolygon); //CIMSimpleRenderer renderer = lyr.GetRenderer() as CIMSimpleRenderer; CIMSimpleRenderer renderer = new CIMSimpleRenderer() { }; CIMStroke outline = SymbolFactory.Instance.ConstructStroke( ColorFactory.Instance.GreyRGB, 0.5, SimpleLineStyle.Solid); CIMPolygonSymbol fillWithOutline = SymbolFactory.Instance.ConstructPolygonSymbol( ColorFactory.Instance.CreateRGBColor(255, 222, 173), SimpleFillStyle.Solid, outline); //Update the symbol of the current simple renderer renderer.Symbol = fillWithOutline.MakeSymbolReference(); //Update the feature layer renderer lyr.SetRenderer(renderer); /* * * unique value rendere * internal static Task UniqueValueRenderer(FeatureLayer featureLayer) * { * return QueuedTask.Run(() => * { * //construct unique value renderer definition * UniqueValueRendererDefinition uvr = new * UniqueValueRendererDefinition() * { * ValueFields = new string[] { SDKHelpers.GetDisplayField(featureLayer) }, //multiple fields in the array if needed. * ColorRamp = SDKHelpers.GetColorRamp(), //Specify color ramp * }; * * //Creates a "Renderer" * var cimRenderer = featureLayer.CreateRenderer(uvr); * * //Sets the renderer to the feature layer * featureLayer.SetRenderer(cimRenderer); * }); * * } * * * diagonal cross hatch example * public static Task<CIMPolygonSymbol> CreateDiagonalCrossPolygonAsync() * { * return QueuedTask.Run<CIMPolygonSymbol>(() => * { * var trans = 50.0;//semi transparent * CIMStroke outline = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(0, 0, 0, trans), 2.0, SimpleLineStyle.Solid); * * //Stroke for the fill * var solid = SymbolFactory.Instance.ConstructStroke(CIMColor.CreateRGBColor(255, 0, 0, trans), 1.0, SimpleLineStyle.Solid); * * //Mimic cross hatch * CIMFill[] diagonalCross = * { * new CIMHatchFill() { * Enable = true, * Rotation = 45.0, * Separation = 5.0, * LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1] { solid } } * }, * new CIMHatchFill() { * Enable = true, * Rotation = -45.0, * Separation = 5.0, * LineSymbol = new CIMLineSymbol() { SymbolLayers = new CIMSymbolLayer[1] { solid } } * } * }; * List<CIMSymbolLayer> symbolLayers = new List<CIMSymbolLayer>(); * symbolLayers.Add(outline); * foreach (var fill in diagonalCross) * symbolLayers.Add(fill); * return new CIMPolygonSymbol() { SymbolLayers = symbolLayers.ToArray() }; * }); * } */ } }); Debug.WriteLine(MapView.Active.Map.Layers[0].Name); // .SetLabelVisibility(true); Debug.WriteLine(MapView.Active.Map.Layers[1].Name); // .SetLabelVisibility(true); //Debug.WriteLine(MapView.Active.Map.SetLabelEngine }
