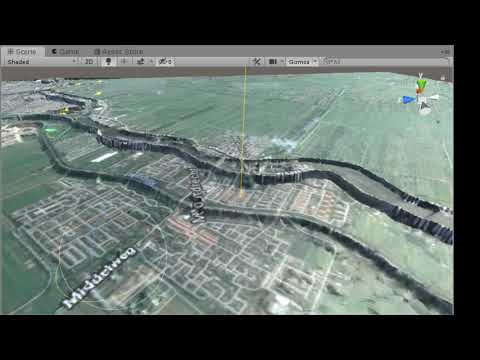

Short movie:

This project is a small test application for:

• https://github.com/TNOCS/WorldExplorer (commissioned by https://www.driver-project.eu/)

The goal of this project is to view a 3D terrain in Unity from real world data. The Digital Elevation Data (DEM) is provided as a raster where each pixel represents a height. To create a height mesh, the raster format is converted to a vector format. The vector data can be used to create a unity mesh with a terrain texture.

The elevation data for the Netherlands is provided by the AHN. The DEM files can be download on https://www.pdok.nl/nl/ahn3-downloads (GeoTiff format). In the DTM format, the raw elevation data is corrected to represent the actual terrain height and not the measured height (without buildings, threes, ...).

To reduce the DEM file size (GeoTiff) tiles are used. The AHM DTM provides a raster density of 0.5 m and 5 meter. In Open Street Map (OSM) (on the equator) in zoom level 14 each pixel is 9.547 meter and in zoom level 15 each pixel is 4.773 meter (https://wiki.openstreetmap.org/wiki/Zoom_levels). The 5 meter raster size will be sufficient for this zoom levels. For 0.5m resolution the tile size is ~ 500MB. For 5 meter the tile size is ~ 5 MB.

The AHN uses GeoTiff as format. The AHN NO_DATA value is set to MIN FLOAT value, some tools can't handle this value.

The following GDAL tools can be useful:

• Use GDAL tools in docker

​ https://github.com/geo-data/gdal-docker

• Info about GeoTiff file

​ gdalinfo

• Batch convert projection to EPSG:3857 (mercator)

#!/bin/bash
for file in $(ls *.tif); do
    gdalwarp -t_srs EPSG:3857 $file mercator_$file;
done

• Replace NO_DATA value (everything below 100 meter)

  ​ gdal_calc.py -A r_30dn2.tif --outfile=result.tif --calc="A*(A<100)" --NoDataValue=0

• Logical merge multiple GeoTiff files:

  ​ gdalbuildvrt tiles.vrt *.tif

• Convert to mercator projection

  ​ gdalwarp -t_srs EPSG:3857 -of GTiff -ot Float32 inputA.tif outputA.tif

To view the GeoTiff in 3D the 'qgis2threejs' plugin from QGIS can be used.

• Mercator (EPSG:3857): Used by OSM and GOOGLE in tiles
• World Geodetic System (EPSG:4326): Latitude / longitude projection
• Rijksdienst (RD, EPSG:28992): Coordinate system (based on meter) used in the Netherlands, AHN is provided in this projection.

The height tiles must be in mercator projector to match the tiles (tile identification system).

The pyramid tile structure is used to retrieve the height mesh and terrain texture. For the terrain texture Google maps and OSM can be used as tiled maps. These tiled maps are also called ' XYZ' or ' Slippy Map'. The tiles have a fixed size (e.g. 256x256 pixels), the projection is web mercator (meter). The tiles are defined by zoom level and X and Y. Google Maps and OpenStreetMap have the same X encoding, in the TMS (Tile map Service) the Y is flipped. The Terrain Mesh format uses the TMS encoding.

For Open Street Map / Google Maps:

public PointF WorldToTilePos(double lon, double lat, int zoom)
{
	PointF p = new Point();
	p.X = (float)((lon + 180.0) / 360.0 * (1 << zoom));
	p.Y = (float)((1.0 - Math.Log(Math.Tan(lat * Math.PI / 180.0) +
		1.0 / Math.Cos(lat * Math.PI / 180.0)) / Math.PI) / 2.0 * (1 << zoom));

	return p;
}

public PointF TileToWorldPos(double tile_x, double tile_y, int zoom)
{
	PointF p = new Point();
	double n = Math.PI - ((2.0 * Math.PI * tile_y) / Math.Pow(2.0, zoom));

	p.X = (float)((tile_x / Math.Pow(2.0, zoom) * 360.0) - 180.0);
	p.Y = (float)(180.0 / Math.PI * Math.Atan(Math.Sinh(n)));

	return p;
}

See https://en.wikipedia.org/wiki/Tiled_web_map and https://wiki.openstreetmap.org/wiki/Slippy_map_tilenames

To view tile numbers on GIS map:

http://www.maptiler.org/google-maps-coordinates-tile-bounds-projection/

The cesium organization has defined two formats for storing terrain height (binary vector format).

• Terrain Height 1.0

A terrain tileset in heightmap-1.0 format is simple multi-resolution quadtree pyramid of heightmaps according to the Tile Map Service (TMS) layout and global-geodetic profile. All tiles have the extension .terrain

The tiles are 65x65 vertices and overlap their neighbors at their edges. In other words, at the root, the eastern-most column of heights in the western tile is identical to the western-most column of heights in the eastern tile.

Terrain tiles are served gzipped. Once extracted, they are at least 8,452 bytes in size. The first and most important part of the file is a simple array of 16-bit, little-endian, integer heights arranged from north to south and from west to east - the first 2 bytes are the height in the northwest corner, and the next 2 bytes are the height at the location just to the east of there. Each height is the number of 1/5 meter units above -1000 meters. The total size of the post data is 65 * 65 * 2 = 8450 bytes.

Following the height data is one additional byte which is a bit mask indicating which child tiles are present. The bit values are as follows:

• Southwest - bit 0 - value 1
• Southeast - bit 1 - value 2
• Northwest - bit 2 - value 4
• Northeast - bit 3 - value 8

If a bit is set, the corresponding .terrain file can be expected to be found on the server as well. If it is cleared, requesting the .terrainfile will return a 404 error.

The child bit mask is followed by the water mask. The water mask is either 1 byte, in the case that the tile is all land or all water, or it is 256 * 256 * 1 = 65536 bytes if the tile has a mix of land and water. Each mask value is 0 for land and 255 for water. Values between 0 and 255 are allowed as well (but not currently present in the data) in order to support anti-aliasing of the coastline.

• Quantized-mesh-1.0

  A terrain tileset in quantized-mesh-1.0 format is a simple multi-resolution quadtree pyramid of heightmaps according to the Tile Map Service (TMS) layout and global-geodetic profile. All tiles have the extension .terrain

The 'height-map' format is deprecated, but very simple to implement. A mesh reduction algorithm could be used to reduce the number of mesh vertexs. However the only implementation that can generate the terrain-height format seems to fail on zoom level 14 (no height data generated). When the height tile is inspected with ctb-info all height are zero (value 5000). When the same tool is used to generate a (tile) GeoTiff tile the result is as expected.

Therefor the ' Quantized-mesh-1.0' is used in this project (after spending a long time finding the problem with height-map). The Quantized-mesh is stored as optimized meshes, this reduces the load time.

There are several tools to convert a GeoTiff to a Tile Map Service structure (a pyramid of heightmaps). This structures matches the structure of web tiles (Open Street Map / Google maps), only the Y value needs to be inverted.

The following programs can be used to create height tiles:

• Cesium Terrain Builder

  Provided as a docker instance (https://hub.docker.com/r/homme/cesium-terrain-builder/). This version can only generate 'Terrain Height 1.0' format and therefore not used.

• Cesium Terrain Builder (upgrade)

  The project 'https://github.com/tum-gis/cesium-terrain-builder-docker' is an upgrade of cesium terrain builder that support ' Quantized-mesh-1.0' format. The application fails when mercator projection must be created.

• TIN-terrain

  The project 'https://github.com/heremaps/tin-terrain' can generate 'Quantized-mesh', 'OBJ' and 'json/geojson'. Multiple mesh reduction algorithm are supported. The GeoTiff must be provided in Web Mercator projection (EPSG:3857). The application can fail when gdalbuildvrt are used to combine multiple GeoTiffs. The .OBJ files can easily inspected in a 3D viewer (this can be misleading because of the heightscale).

1. https://github.com/tum-gis/cesium-terrain-builder-docker#create-cesium-terrain-files

Unfortunately there is no container in Docker Hub, so you have to create it yourself

• Download source code from "https://github.com/heremaps/tin-terrain"
• Run './build-docker.sh' (in bash emulator under windows)
• To validate: docker images should contain container "tin-terrain"

To start the docker environment:

``

• Download GeoTiff tiles at https://www.pdok.nl/nl/ahn3-downloads (DTM, 5 meter grid)

• Start TIN-Terrain in docker:

  docker run --name tin-terrain --rm -it -v C:\development\QuantizedMesh\AHN\DTM:/data tin-terrain /bin/bash then cd \data

  Where "C:\development\QuantizedMesh\AHN\DTM" is the path on local computer with GeoTiffs

• Convert to mercator projection

  #!/bin/bash for file in $(ls *.tif); do ​ gdalwarp -t_srs EPSG:3857 $file mercator_$file; done

• Create Virtual Dataset (combine multiple tif files)

  ​ gdalbuildvrt tiles.vrt mercator_*.tif

• Generate terrain structure

  tin-terrain dem2tintiles --input /data/tiles.vrt --output-dir /data/tiles --min-zoom 5 --max-zoom 14 --output-format=terrain --max-error 0.5

The ' --max-error' (distance (in meter) used for optimization):

• Low values: high detail; large number of triangles in mesh
• High value: lower detail; small number of triangles in mesh

In https://github.com/tangrams/unity-terrain-example is an example how to use heightmap image.

When requesting tiles, be sure to include the following HTTP header in the request:

Accept: application/vnd.quantized-mesh,application/octet-stream;q=0.9

Otherwise, some servers may return a different representation of the tile than the one described here.

Each tile is a specially-encoded triangle mesh where vertices overlap their neighbors at tile edges. In other words, at the root, the eastern-most vertices in the western tile have the same longitude as the western-most vertices in the eastern tile.

Terrain tiles are served gzipped. Once extracted, tiles are little-endian, binary data. The first part of the file is a header with the following format. Doubles are IEEE 754 64-bit floating-point numbers, and Floats are IEEE 754 32-bit floating-point numbers.

struct QuantizedMeshHeader
{
    // The center of the tile in Earth-centered Fixed coordinates.
    double CenterX;
    double CenterY;
    double CenterZ;

    // The minimum and maximum heights in the area covered by this tile.
    // The minimum may be lower and the maximum may be higher than
    // the height of any vertex in this tile in the case that the min/max vertex
    // was removed during mesh simplification, but these are the appropriate
    // values to use for analysis or visualization.
    float MinimumHeight;
    float MaximumHeight;

    // The tile’s bounding sphere.  The X,Y,Z coordinates are again expressed
    // in Earth-centered Fixed coordinates, and the radius is in meters.
    double BoundingSphereCenterX;
    double BoundingSphereCenterY;
    double BoundingSphereCenterZ;
    double BoundingSphereRadius;

    // The horizon occlusion point, expressed in the ellipsoid-scaled Earth-centered Fixed frame.
    // If this point is below the horizon, the entire tile is below the horizon.
    // See http://cesiumjs.org/2013/04/25/Horizon-culling/ for more information.
    double HorizonOcclusionPointX;
    double HorizonOcclusionPointY;
    double HorizonOcclusionPointZ;
};

Immediately following the header is the vertex data. An unsigned int is a 32-bit unsigned integer and an unsigned short is a 16-bit unsigned integer.

struct VertexData
{
    unsigned int vertexCount;
    unsigned short u[vertexCount];
    unsigned short v[vertexCount];
    unsigned short height[vertexCount];
};

The vertexCount field indicates the size of the three arrays that follow. The three arrays are zig-zag encoded in order to make small integers, regardless of their sign, use a small number of bits. Decoding a zig-zag encoded value is straightforward:

decoded = (encodedValue >> 1) ^ (-(encodedValue & 1))

Once decoded, the meaning of a value in each array is as follows:

Immediately following the vertex data is the index data. Indices specify how the vertices are linked together into triangles. If tile has more than 65536 vertices, the tile uses the IndexData32 structure to encode indices. Otherwise, it uses the IndexData16 structure.

To enforce proper byte alignment, padding is added before the IndexData to ensure 2 byte alignment for IndexData16 and 4 byte alignment for IndexData32.

struct IndexData16
{
    unsigned int triangleCount;
    unsigned short indices[triangleCount * 3];
}

struct IndexData32
{
    unsigned int triangleCount;
    unsigned int indices[triangleCount * 3];
}

Indices are encoded using the high water mark encoding from webgl-loader. Indices are decoded as follows:

var highest = 0;
for (var i = 0; i < indices.length; ++i) {
    var code = indices[i];
    indices[i] = highest - code;
    if (code === 0) {
        ++highest;
    }
}

Each triplet of indices specifies one triangle to be rendered, in counter-clockwise winding order. Following the triangle indices is four more lists of indices:

struct EdgeIndices16
{
    unsigned int westVertexCount;
    unsigned short westIndices[westVertexCount];

    unsigned int southVertexCount;
    unsigned short southIndices[southVertexCount];

    unsigned int eastVertexCount;
    unsigned short eastIndices[eastVertexCount];

    unsigned int northVertexCount;
    unsigned short northIndices[northVertexCount];
}

struct EdgeIndices32
{
    unsigned int westVertexCount;
    unsigned int westIndices[westVertexCount];

    unsigned int southVertexCount;
    unsigned int southIndices[southVertexCount];

    unsigned int eastVertexCount;
    unsigned int eastIndices[eastVertexCount];

    unsigned int northVertexCount;
    unsigned int northIndices[northVertexCount];
}

These index lists enumerate the vertices that are on the edges of the tile. It is helpful to know which vertices are on the edges in order to add skirts to hide cracks between adjacent levels of detail.

Extension data may follow to supplement the quantized-mesh with additional information. Each extension begins with an ExtensionHeader, consisting of a unique identifier and the size of the extension data in bytes. An unsigned char is a 8-bit unsigned integer.

struct ExtensionHeader
{
    unsigned char extensionId;
    unsigned int extensionLength;
}

As new extensions are defined, they will be assigned a unique identifier. If no extensions are defined for the tileset, an ExtensionHeaderwill not included in the quanitzed-mesh. Multiple extensions may be appended to the quantized-mesh data, where ordering of each extension is determined by the server.

Multiple extensions may be requested by the client by delimiting extension names with a -. For example, a client can request vertex normals and watermask using the following Accept header:

Accept : 'application/vnd.quantized-mesh;extensions=octvertexnormals-watermask'

The following extensions may be defined for a quantized-mesh:
